Complete Air Ride Kit | 1949-1965 Classic VW Type 1 Beetle Ghia

⭐️⭐️⭐️⭐️⭐️ - "Get the stance you want and comfort you need. Our Air Ride Kit lets you lift or drop your Classic VW in seconds. Complete kit, easy install, built to last." - ⭐️⭐️⭐️⭐️⭐️

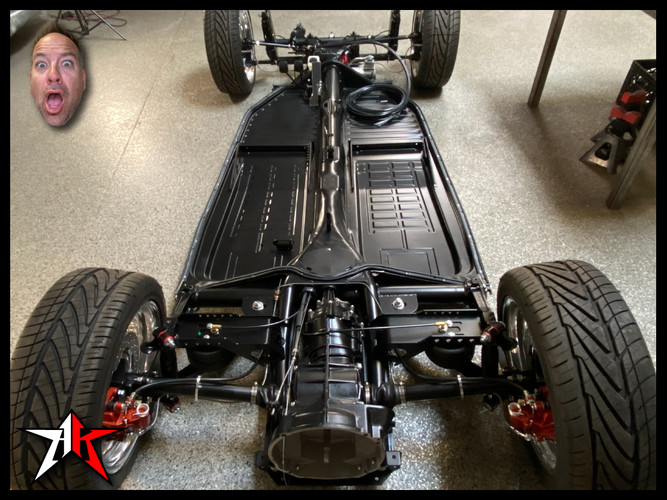

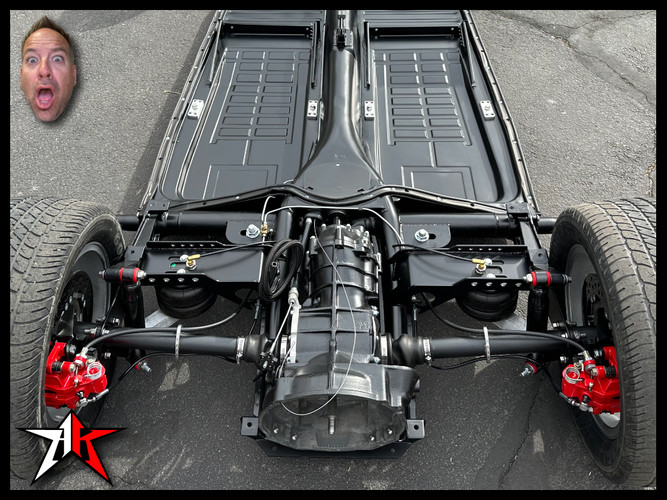

A better way to Air Ride a Classic Volkswagen Type 1 with link pin front suspension and swing axle rear suspension (1949 through 1965) is with a Complete Air Ride Kit from Airkewld. It converts the ENTIRE VW from torsion-sprung suspension to air-ride suspension.

Key Benefits

• Soft Ride
• Instantly lift or lower your ride with a touch of a button
• Reservoir tank auto fills to always have air when you need it
• Your Classic VW is instantly cooler with this kit on it

What's Included

Complete Front Kit

• Upper Shock Mounts
• Air Sleeve Shocks
• Through Rod Set
• Hardware Pack
• Printed Instructions

Complete Rear Kit

• Swing Axle Bracket Kit
• 2500lb Air Bags
• Short Shocks
• Hardware Pack
• Printed Instructions

4 Valve Air Management Kit

• 12V Compressor
• Pressure Switch
• 2 Gallon Tank
• Manual Valves with Gauges
• 1/4 inch Air Line
• Hardware Pack
• Printed Instructions

Compatibility

• This kit is designed to work with an OEM Volkswagen front beam or an Ultimate/ECObuilt Beam from Airkewld. The PRO's can not tech support another vendors beam with our air ride kit.
• Drop Spindles are required if you want to get as low as possible. If you need advice on what spindles make the most sense, check out this article.
• The link pin lower shock relocaters are recommended and will require less pressure to lift and will give the vehicle an even better ride quality as it moves the lower shock mount into a better leverage location.
• If you are looking for an ALL-IN-ONE package, consider the Stage 2 PRObuilt Beam found here or the Complete PRObuilt Air Ride Kit found here.
• If you are utilizing a pre-59 transaxle with straight shock mounts, you will need to update the mounts to a late model set found here or update to a late model transaxle, like this.

How To

• Front Install Guide - PDF Link

• Rear Install Guide - Link
• Air Management Guide - PDF Link
• Packing Lists

FAQ

Q: Is welding required for this kit? A: Yes. Both front and rear kits require welding

Q: Does the body need to come off to install the air ride? A: To do it right, yes. If you have a pit or lift, it can make it easier but the PRO's recommend to remove the body, it should only take 1-2 hours to make that happen and the ease of installation triples.

Q: Can the heaters still work with the air ride kit installed? A: Simple answer, No. If you are fabrication friendly, you can make it work.

Q: Will this work with my existing narrowed beam? A: If it looks like a stock beam and still has factory towers and roller bearings inside the beam, yes. All others, no.

Q: What kind of time would it take to install this on my VW? A: 16 hours or 1 weekend.

Q: Do I need Drop Spindles with my this Air Ride Kit? A: Yes. The kit was designed with them being used.

Q: Can I use an electronic air management kit with your air ride? A: You can, but we will be unable to tech support any issue as we don't have the ability to recreate any issues or problems with every vendors AMK and their updates.

Q: Do you offer a bolt on solution? A: Up front we do with our Stage 2 PRObuilt Beam that comes with a narrowed beam, drop spindles, with the air ride installed for literally a 4 hour install up front. The air management kit we supply is bolt on. The rear kits we offer are all weld on.

Q: Is there anything else I will need with this kit? A: No. But check the PRO's recommendations above for specific call-outs.
