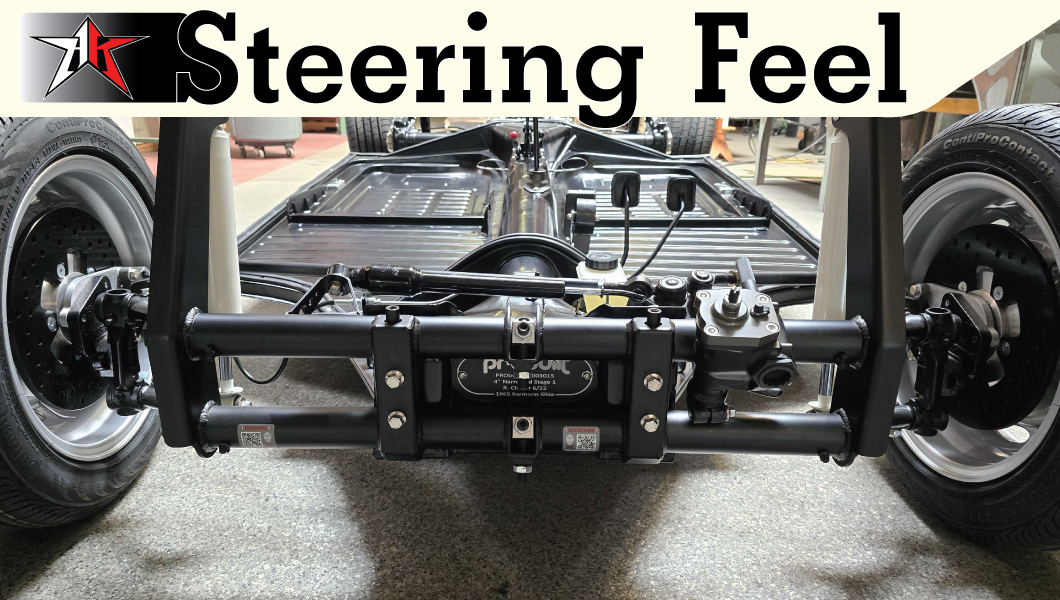

Improving the Classic VW Steering Experience

Airkewld PRO Guide

A PRO-led, model-by-model audit and upgrade path for Classic VW steering systems — from 1949 King & Link Pin to 2004 Ball Joint, plus the Type 181 Thing. Hand-built, audited, and dialed in by Airkewld PRO's with 24+ years under these cars.

Why Trust This Guide

Every torque value, every adjustment, every recommended part on this page has been validated on Airkewld’s shop floor. The PRO's here have spent two decades rebuilding, auditing, and improving Classic VW steering systems — not theorizing about them. When we point you to a PRObuilt part, it’s because we’ve seen what the alternatives do over time, and we’ve engineered ours to outperform them.

The Two-Person Audit (Do This First, Every Time)

Before you spend a dollar on parts, do the audit. One person at the wheel rocking it back and forth, one person under the car watching, feeling, and listening for play, creep, deflection, and flex. This single step tells you 80% of what your steering actually needs.

1949–1961 Beetle & Ghia — King & Link Pin

Original-style stamped VW steering box. No factory damper.

PRO Audit & Torque Specs

Pitman Arm	51 ft-lbs
Steering Coupler	22 ft-lbs
Steering Box Clamp to Beam	22 ft-lbs
Tie Rod Ends	Zero play, zero creep
King Pins	No rocking in any direction
Link Pins	Tight, fully greased, no slop
Wheel Bearings	Tighten until hub stops moving, back off 1/4 turn, lock down

Centering a Stamped OEM VW Box

1. Turn the wheel left and right slowly.
2. Feel for a center “peak” — like cresting a small hill.
3. Adjust the box screw in until that peak is firm, then back off slightly.
4. Mark the peak on the input shaft, position it at 12 o’clock.
5. Re-clock the steering wheel and adjust tie rods so the wheels point dead ahead.

Why Not a 10/10?

Steering feel is like steak doneness — the last point or two is personal preference. Once the macro system is dialed, the rest is micro-adjustment.

Final Tweaks That Matter

• Four-wheel alignment. Don’t settle for a front-end-only job. Square the front to the rear and match side to side.
• Caster shims. Inexpensive, reversible, and a fast way to test for better return-to-center and high-speed stability.

1962–1965 Beetle & Ghia — King & Link Pin (w/ Damper)

Newer-style steering box; factory steering damper introduced.

Same chassis family as the early cars, but this is the first generation to ship with a factory steering damper and the updated box. Done right, this setup will outdrive a worn-out 1960's OEM rebuild every time. Done with PRObuilt parts, it can outdrive a brand-new 1960's OEM job.

PRO Audit & Torque Specs

Pitman Arm	51 ft-lbs
Steering Coupler	22 ft-lbs
Steering Box Clamp to Beam	22 ft-lbs
Tie Rod Ends	Zero play, zero creep
King Pins	No rocking
Link Pins	Tight, play-free, fully greased
Roller Wheel Bearings	Tighten until hub stops, back off 1/4 turn, lock down

OEM VW-Stamped Box vs. Aftermarket

Aftermarket (TRW, Chinese, unbranded): looser tolerances, vague feedback, faster wear. You can dial them in but the ceiling is lower.

OEM stamped: look at the collar where the input shaft meets the coupler. From the factory, the split in that collar sits at 12 o’clock when the wheel is centered. To fine-tune:

1. Loosen the jam nut on the steering box.
2. Turn the adjuster in slowly until it just contacts — then a hair more.
3. Tighten the jam nut.
4. Re-clock the steering wheel straight on the shaft.
5. Adjust tie rods to get the wheels visually aligned.

Final Tweaks That Matter

• Four-wheel alignment. Square the front to the rear; match camber and toe side to side.
• Caster shims. Worth testing if you want sharper self-centering or more stability at speed.

1966–1968 Beetle & Ghia — Ball Joint (10mm Tie Rods / 17mm Nuts)

First ball joint front ends. 10mm tie rod ends, 17mm nuts.

PRO Audit & Torque Specs

Pitman Arm Clamping Bolt	51 ft-lbs
Steering Coupler (4 fasteners)	22 ft-lbs
Steering Box Clamp to Beam	22 ft-lbs
Tie Rod Ends	Zero play, zero creep
Ball Joints	Boots intact; no vertical movement when the wheel is rocked
Roller Wheel Bearings	Tighten until hub stops, back off 1/4 turn, lock down

Steering Box: Know What You’re Working With

If your box is TRW, Chinese, or anything without the VW stamp, you’re fighting looser tolerances and a softer feel. That’s decades of PRO bench time talking, not opinion. With a stamped OEM box, you have real headroom — the collar split on the input shaft should sit at 12 o’clock with the wheel centered.

1. Loosen the jam nut on the adjuster.
2. Turn the adjuster in until it just contacts — a hair more.
3. Lock the jam nut.
4. Re-center the steering wheel on the shaft.
5. Get the front wheels pointed roughly straight ahead.

Final Tweaks That Matter

• Four-wheel alignment. Front squared to rear, geometry matched side to side.
• Caster shims. Cheap, reversible, and worth testing for straight-line stability.

1969–2004 Beetle, Ghia & Fridolin — Ball Joint (12mm Tie Rods / 19mm Nuts)

Ball joint front end with the 12mm tie rod end / 19mm nut spec.

PRO Audit & Torque Specs

Pitman Arm Clamping Bolt	51 ft-lbs
Steering Coupler	22 ft-lbs (all hardware)
Steering Box Clamp to Beam	22 ft-lbs
Tie Rod Ends	Zero play, zero creep
Ball Joints (Control Arms)	Boots intact; no vertical movement on input
Roller Wheel Bearings	Tighten until hub stops, back off 1/4 turn, lock down

Steering Box: Know What You’re Working With

Aftermarket boxes (TRW, Chinese, unbranded) operate on sub-OEM tolerances. In our PRO experience they consistently fall short on precise feedback and long-term reliability. Got a real VW-stamped original? Worth optimizing:

1. The input shaft collar split should sit at 12 o’clock with the wheel centered.
2. Loosen the jam nut.
3. Turn the adjuster screw in until it contacts — a smidge more.
4. Lock the jam nut.
5. Realign the steering wheel on the shaft and get the fronts pointing ahead.

Final Tweaks That Matter

• Four-wheel alignment. Not toe-and-go — front squared to rear, suspension matched side to side.
• Caster shims. Reversible, inexpensive, and worth testing if you want a more planted feel at speed.

Type 181 Thing — Ball Joint Front End

Raised geometry, ball joint front, classic Thing handling.

PRO Audit & Torque Specs

Pitman Arm Clamping Bolt	51 ft-lbs
Steering Coupler	22 ft-lbs
Steering Box Clamp to Beam	22 ft-lbs
Tie Rod Ends	Zero play, zero creep
Ball Joints (Control Arms)	Boots intact; no vertical movement on input
Roller Wheel Bearings	Tighten until hub stops, back off 1/4 turn, lock down

Steering Box: Know What You’re Working With

Non-VW boxes (TRW, Chinese, unbranded) come with vague feel and accelerated wear — we see it in the shop constantly. With a stamped OEM box, here’s the PRO method:

1. The input shaft collar split should be at 12 o’clock with the wheel straight.
2. Loosen the jam nut on top of the box.
3. Turn the adjuster in until it contacts — a hair more.
4. Lock the jam nut.
5. Center the steering wheel and get the fronts pointed ahead.

Final Tweaks That Matter

• Four-wheel alignment. Square front to rear, match suspension side to side — this is where the magic shows up.
• Caster shims. Reversible and inexpensive. Worth testing if you want a more planted highway feel.

Why You Stop at 8/10 or 9/10 (And How to Push Further)

Even with every torque spec hit, every component replaced, every adjustment dialed — you’ll likely land at an 8 or 9. Steering feel is subjective, like steak doneness. Some drivers want feather-light, some want vault-tight, most want something in between. Get the macro setup right, then the last point is yours to tune.

All PRObuilt components on this page are hand-assembled, audited, and backed by 24+ years of Classic VW steering experience at Airkewld.
