What Is a Narrowed Beam — and Do You Actually Need One?
Narrowed beam. Two-inch narrow. Four-inch narrow. You've heard the terms — usually right next to a photo of a Beetle sitting low and tucked perfectly inside the fenders. Here's the part nobody talks about: a narrowed beam isn't a styling choice. It's a math problem.
Built to Live Forever — Just Not on Modern Wheels
The Classic Volkswagen front suspension is a beam assembly with internal torsion leaves — slats — doing the spring work. In its factory form it's elegant, simple, and built to last, which is why these cars are still on the road 50+ years later. It gives the vintage ride and feel that drew most of us to these cars in the first place.
What it wasn't designed for: modern wheels, modern brakes, modern stance.
Stack two or three popular upgrades together and suddenly the wheels sit noticeably outside where the factory put them. The car looks bow-legged. The fenders don't tuck. That is when most people start asking about a narrowed beam.
Three Upgrades That Push Your Track Wider
Most popular front-end upgrades add width — sometimes without the owner realizing it. These are the numbers that drive the whole equation.
Disc Brake Kits
0 – 1.5″Up to 38mm, vendor dependent
Dropped Spindles
3/4″19mm total · 3/8″ per side
Wheels
VariesWidth, offset, backspacing
Beams Built
25,000+American steel since 2007
Narrowing Without the Math Will Ruin How Your Car Drives
Pull the wheels in without the disc brake kit, dropped spindles, or wheel offset that added the width in the first place, and you're now running a track narrower than the car was ever engineered for. The result is twitchy steering, strange handling, and a car that fights you on the highway. Looks great parked. Not fun to drive.
A narrowed beam isn't a fix on its own. It's the answer to a specific equation — and the question that decides everything is a short one.
The Short Version, If You Just Want a Number
These are starting points, not final answers — a PRO confirms every build before we cut metal. But if you want the ballpark before you pick up the phone, here it is.
✓ Running Stock Drum Brakes
Drums don't add track. Your width usually comes from wheels and spindles alone.
Typical answer: 3″ narrowed.
✓ Running Disc Brakes
Most disc kits push the wheel outboard. That extra track has to come back somewhere.
Typical answer: 4″ narrowed.
! Not Sure Which Disc Kit
Zero-offset sits flush with the stock mounting surface — track unchanged. Add-track pushes the wheel out and needs more narrowing.
If you don't know, assume add-track.
Hard Rules Worth Knowing Before You Configure
✓ Always Available
- Stock Drum and Drop Drum spindles fit every year, link pin and ball joint. All Airkewld spindles are forged.
- Drop Drum spindles are now zero-offset — they work with stock drums or our BAD Series discs with Wilwood calipers.
- Running an aftermarket disc kit that bolts to stock spindles? Order Stock Drum spindles — the bracketry needs them.
- Have proprietary disc spindles already? Ship them in. Prepaid label, we QC and assemble onto your new beam.
✗ Combinations That Don't Exist
- Stock Disc or Drop Disc spindles on a Link Pin car — 1949–1965 VWs never had factory discs. Ball joint only.
- Stage 2 Air Ride in ECObuilt or OGbuilt — air ride is PRObuilt only.
- 6″ Shockless with Stage 2 — shockless is Stage 1 only.
- A narrowed OGbuilt — OGbuilt ships stock width. Need narrowing? Step up to ECObuilt or PRObuilt.
You can't accidentally order an impossible combination — a PRO reviews every order before production and catches it first. This list just saves you the phone call.
Same Geometry. Same Audit. Three Ways to Buy It.
All three pass the same QC and the same PRO review. The difference is components and finish — not process.
OGbuilt — Raw + OEM German
From $1,299New-construction beam in raw steel, assembled with quality-controlled and audited Original German VW components. Torsions cleaned and re-dimpled, German ball joints pressed and broken in, the same shocks as ECO and PRO. Cosmetic dings stay — the quality doesn't change. Stage 1 only, stock width.
Shop OGbuilt →ECObuilt — All New, Unfinished
All-New ComponentsThe same beam as PRObuilt, built with all-new components and shipped raw. Paint or powder coat it yourself and keep the difference. Narrowing available. Stage 1 only.
Shop ECObuilt →PRObuilt — Powder Coated
Stage 1 or Stage 2Fully finished, fully assembled, ready to bolt on. All-new components, powder coated, narrowed to your spec. The only tier available with Stage 2 Air Ride and Custom Color.
Shop PRObuilt →Let's Run the Math on Your Front End
Six questions, the same ones a PRO would ask. Or skip straight to the configurator if you already know what you want. Either path lands on the exact beam to order — and a PRO still reviews it before we cut metal.

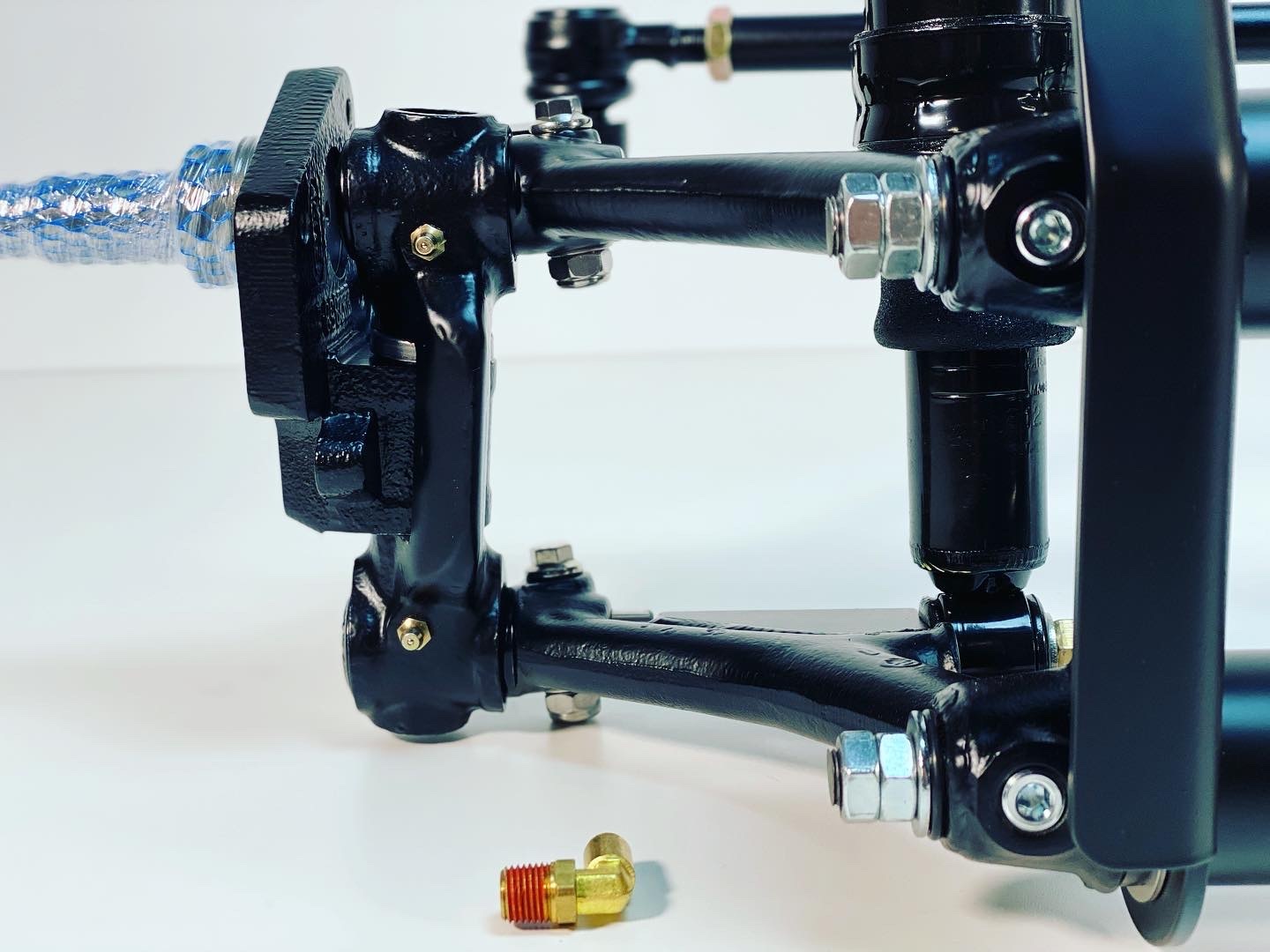

See a PRObuilt Beam Come Together
Watch what actually happens between your order and the crate showing up — the narrowing, the geometry check, the assembly, and the final audit before it ships.
Then come back here and run the selector.
PRO Reviewed
Assured
Guarantee
Packaging
From Selector to Your Driveway
Five steps from "I think this is the right beam" to "it's bolted on and the car sits right." A PRO reviews every order before we cut metal.
Use the Selector
Or jump to the configurator if you know what you want. Either path routes you to the correct product page.
Order the Beam
Confirm your width and options on the product page. Place your order.
PRO Review
We confirm narrowing, wheels, brakes, and compatibility within 1–2 business days.
Final Config
Any adjustments confirmed in writing before we build.
Ship in 7–10 Days
Fully assembled, world-class packaged, ready to bolt on.
Know Your Number? Here's Where It Goes.
Depending on where you are in your build, there are four solid paths forward — every one of them built around the Ultimate Beam.
Ultimate Beam, Narrowed to Spec
Already have your spindles, brakes, and wheels sorted? Order an Ultimate Beam narrowed to the exact dimensions your build needs.
Shop Ultimate Beams →PRObuilt Complete Lowering Kit
Everything you need to nail your stance and fitment in one package — Ultimate Beam included. The simplest way to buy the whole equation at once.
Shop Lowering Kits →PRObuilt Spindle-to-Spindle Beam
A fully assembled, ready-to-bolt-in front end built by a team that lives and breathes Volkswagen drivetrains. Also built around the Ultimate Beam.
Shop Assembled Beams →Complete Drive-Train Solution
A PRObuilt Beam plus a PRObuilt Transaxle, with the widths you need to fit the wheel you want for the stance you covet. Front and rear math solved together.
Shop Drive-Train Packages →The Questions We Get Most
Do I actually need a narrowed beam?
Only if something added width to your track. Disc brake conversions can add up to 1.5″, drop spindles add about 3/4″, and wheels vary by offset and backspacing. If you haven't changed any of those, the honest answer is usually no — and narrowing anyway will make the car drive worse, not better. Sometimes the right answer is "don't narrow it." We'll tell you that.
How much narrowing do I need?
As a starting point: stock drum brakes usually land around 3″ narrowed, disc brakes usually around 4″. But the real number depends on your specific wheel offset, brake kit, and spindle choice stacked together. Run the selector above, or call a PRO — either way we confirm the math before we cut metal.
What's the difference between zero-offset and add-track disc brakes?
Zero-offset discs sit flush with the stock wheel mounting surface, so your track width stays the same as it was with drums. Add-track discs push the wheel outward for a wider, more aggressive stance — and typically need more beam narrowing to tuck under stock fenders. If you don't know which yours is, assume add-track.
What's the difference between OGbuilt, ECObuilt, and PRObuilt?
PRObuilt is all-new components, fully finished and powder coated — the reference standard, and the only tier offered with Stage 2 Air Ride or Custom Color. ECObuilt is the same all-new build shipped raw, so you finish it yourself and save. OGbuilt is the entry point at $1,299: the same new-construction beam platform assembled with quality-controlled, audited Original German VW components — torsions cleaned and re-dimpled, German ball joints pressed and broken in, the same shocks as ECO and PRO. Cosmetic dings stay. All three pass the same QC and the same audit.
Can I get OGbuilt or ECObuilt with air ride?
No. Stage 2 Air Ride is PRObuilt only. OGbuilt and ECObuilt are both Stage 1 static-adjustable. OGbuilt also ships stock width only — if your build needs narrowing, step up to ECObuilt or PRObuilt.
I already have aftermarket disc spindles. Can you still build my beam?
Yes. Pick Client's Disc Spindles in the selector. We send a prepaid label, you ship them in, we QC them and assemble them onto your new beam. The liability is on us — if something isn't right, we catch it on our bench, not in your driveway. If your disc kit bolts to stock spindles instead, order Stock Drum spindles — the bracketry needs them.
My car is a Link Pin. Which spindles can I run?
Stock Drum and Drop Drum — both forged, both available for link pin. Stock Disc and Drop Disc spindles are Ball Joint only because 1949–1965 VWs never had factory discs. Our Drop Drum spindles are now zero-offset and work with stock drums or our BAD Series disc brakes with Wilwood calipers, which is how most link pin owners get modern braking.
What if I order the wrong width?
You can't. A PRO reviews every single order before production, confirming narrowing, wheel and brake fitment, and suspension compatibility. If something in your setup doesn't add up, we catch it and confirm the change with you in writing — before we cut metal. That review takes 1–2 business days and it's the reason we've built 25,000+ beams without a fitment guessing game.
How long does a beam take to build and ship?
7–10 days from PRO review, fully assembled and world-class packaged. Free terminal pickup nationwide; home delivery typically runs $150–$350 depending on location.
Sometimes the Right Answer Is "Don't Narrow It."
The PROs at Airkewld will walk through your current setup with you, look at the math, and tell you honestly whether you need a narrowed beam — or whether you don't. No strings, no upsell, no obligation. If the answer is leave it alone, we'll tell you that too.
