Kit Cars.
If it fits a Beetle, it almost always fits your buggy. Here is what changes, and the kit car parts we build for it.

STRAIGHT ANSWER
Beetle parts fit, with three caveats.

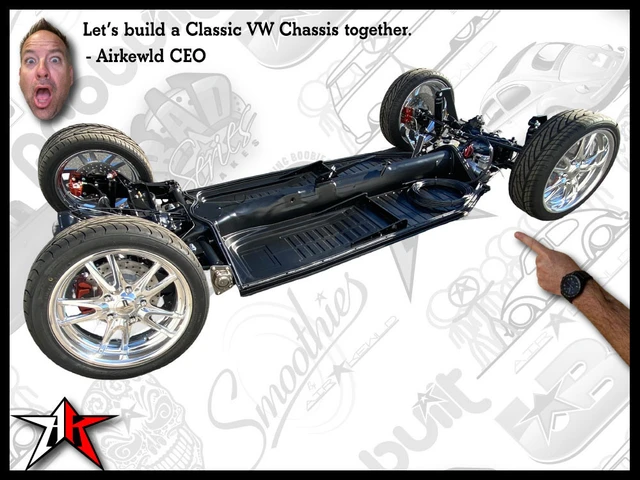

Kit cars ride on a VW Beetle pan, so nearly everything we make for the Beetle bolts on. Know these three before you order.
KIT CAR PARTS WE OFFER
Kit car owners ask us
Will Beetle parts fit my Manx or kit car?
Almost always. Kit cars ride on a VW Beetle pan, so suspension, steering, brakes and drivetrain parts bolt up like a Beetle. The exceptions are the shortened pan, the front beam towers and narrowed beams for lowered cars.
Why won't a standard front beam fit?
The shock towers on a standard beam interfere with kit car bodies. Our kit car PRObuilt beams, in ball joint and link pin, have shortened towers so they clear the body.
Why are narrowed kit car beams shockless?
Body makeup varies from one kit car manufacturer to the next. Running the narrowed beam for lowered cars without shocks keeps it clear of the body, whoever built it.
My pan is shortened. What do I need to check?
Most kit car pans are shortened 14.5 inches. Anything that runs the length of the pan needs to be checked against your pan before you order.
Every kit car part we offer is listed below. Need year-specific drivetrain parts? Shop Beetle by year →
Still have a question? Ask a PRO →
